0.9 Output Online Rack Mountable UPS RS232 50/60Hz for VoIP

उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: SOROTEC
प्रमाणन: CE,ROHS,ISO9000
Model Number: HP9117C 0.7 - 3KVA
भुगतान & नौवहन नियमों:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

विस्तार जानकारी

आवृत्ति: 50 या 60 हर्ट्ज आवेदन: वीओआईपी
पावर फैक्टर: > 0.98 वोल्ट: 100-127 वी या 180-276 वी
नाममात्र वोल्टेज: 100/110/120 / 127VAC या 200/208/220/230 / 240VAC नाममात्र आवृत्ति: 50/60 हर्ट्ज
वोल्ट रेंज: 60-138VAC या 115-276VAC आवृत्ति रेंज: 50 हर्ट्ज: (46 ~ 54HZ); 60 हर्ट्ज: (56HZ ~ 64HZ)
आवृत्ति परिशुद्धता: 50 हर्ट्ज / 60Hz 0.05Hz ±
हाई लाइट:

backup power supply

,

uninterruptable power supply

उत्पाद विवरण

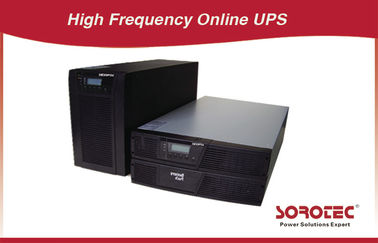

0.9 Output Online Rack Mountable UPS RS232 50/60Hz For VoIP


Application:
IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems, Chip fabrication, Pharmaceutical production, Chemical processing


Key Features
1.Output Power Factor is 0.9 and
2.Optional language (English/Russian/German/ French/Spanish)
3.EPO, USB and RS232 Function
4.Voltage:100-127V or 180-276V
5.Automatic selection of nominal frequency 50/60Hz for Inverter to match Input /Output (Auto Sync.)
6.Protects against downtime, data loss and process interruption by providing continuous, clean power
7.Increases battery service life and system uptime with ABM battery charging technology
8.Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical systems or processes thanks to a capability to control load segments.
9.Provides installation flexibility with a choice of rack or tower designs, both conserving valuable space
10.Can replace batteries online, convenient for user to use
11.Enhanced monitoring and configuration capability through easily navigated multilingual graphical display.


Technical Specifications:

Model HP9117C 0.7-3KVA
0.7KT/0.7KR 0.7KT-XL/0.7KR-XL 1KT/1KR 1KT-XL/1KR-XL 1.5KT/1.5KR 1.5KT-XL/1.5KR-XL 2KT/2KR 2KT-XL/2KR-XL 3KT/3KR 3KT-XL/3KR-XL
Capacity 0.7KVA/0.63KW 1KVA/0.9KW 1.5KVA/1.35KW 2KVA/1.8KW 3KVA/2.7KW
Nominal Voltage 100/110/120/127VAC or 200/208/220/230/240VAC
Nominal Frequency 50/60 Hz
Input
Voltage Range 60-138VAC or 115-276VAC
Frequency Range 50HZ:(46~54HZ);60HZ:(56HZ~64HZ)
Power Factor >0.98
Output
Voltage Precision 100/110/120/127VAC 2%) or 200/208/220/230/240VAC (±2%)
Frequency Precision 50Hz/60Hz±0.05Hz
Power Factor 0.9
Harmonic Distortion Linear Load<3% Non-Linear Load<5%
Overload Capacity 100%~102% overload warning;102%~129% 12s; 130%~149% 2s; ≥150% 100ms
Current Crest Ratio 3:1
Transfer Time 0ms AC→DC

( )
Battery
DC Voltage 24VDC 36VDC 48VDC 96VDC 96VDC
Recharge Time 5 hours to 90%(it mean standard model which battery inside the UPS)
Charge Current 1A 4A/8A(option) 1A 4A/8A(option) 1A 4A/8A(option) 1A 4A/8A(option) 1A 4A/8A(option)
Panel Display
LCD UPS status, input/output voltage and frequency, battery voltage, capacity, load, temperature, history records
Language English, French, German, Russian, Spanish
Communications
Communications Interface Optional: SNMP card,AS400 card or the CMC provide software, EPO ,USB port
Working Environment
Temperature 0 40℃
Relative Humidity 0 95% (Non-condensing)
Storage Temperature -25℃ 55℃
Elevation <1500 m
Noise Level(1m ) <45dB <50dB
Physics Characteristic
Weight
(KG)
N.W 13   14 9   10 15     16  8.5     9 18    18.5   10    10.5 33   10.5 16.5  11.5 34 11.5 17  12.5
G.W 15   16 11  13 17.5  17.5 11     11.5 20    20.5 12    12.5 35   12.5 18.5  13.5 36   13.5 19  14.5
Dimensions: ( Wx D x H )mm
Main unit(Tower) 158X355X250 158X385X250 158X433X250 220X410X345 220X410X345
Main unit(Rack mount) 482.6X450X89(2U)



0.9 Output Online Rack Mountable UPS RS232 50/60Hz for VoIP 0 0.9 Output Online Rack Mountable UPS RS232 50/60Hz for VoIP 1 0.9 Output Online Rack Mountable UPS RS232 50/60Hz for VoIP 2
