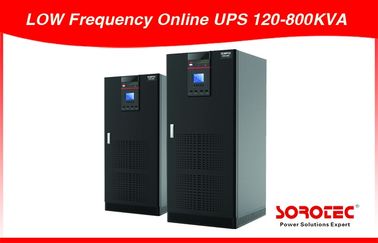

3 Phase Low Frequency Online UPS Pure Sine Wave Power Supply for Telecom

उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: SOROTEC
प्रमाणन: CE,ROHS,RSO9000
Model Number: GP9335C 10-800KVA
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 2PCS
मूल्य: 10000USD
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000PCS Per Month

विस्तार जानकारी

उत्पाद: कम आवृत्ति ऑनलाइन यूपीएस अवस्था: तीन चरण
बिजली उत्पादन के कारक: 0.9 क्षमता: 10-800KVA
आउटपुट वोल्टेज: 380/400/415Vac इनपुट वोल्टेज: 380/400 / 415VAC 3-चरण 4-तार
आवृत्ति: 50/60 हर्ट्ज डीसी वोल्टेज: 360/384/432 / 480VAC
सुरक्षा स्तर: IP20 वजन: 980 -7390 कि.ग्रा
आयाम (डब्ल्यू * घ * ज): 900 * 855 * 1900mm प्रणाली दक्षता: 94% (पूर्ण भार)
आवेदन: डेटा सेंटर, उद्योग, सर्वर
हाई लाइट:

शुद्ध साइन लहर अप

,

remote control ups

उत्पाद विवरण

3 Phase Low Frequency Pure Sine Wave Online UPS Power Supply for Telecom



Key Features:
1.Use advanced 6th generation DSP and full digital control technologies to realize higher system stability.



2.Output power factor is 0.9, carrying capacity than conventional UPS with 10% above, as users reduce investment cost.


3.Advanced distributed active parallel technology can realize parallel operation of 6PCS UPS units without the need of centralized bypass cabinet.



4.6-inch extra large LCD that can display 12 language (Chinese ,English,Russian,Spanish,French and so on).



5.Extra wide input voltage and frequency range make it adapt to severe power grid environment



6.Intelligent battery management maintains battery automatically to prolong the battery life.


7.Standard input/output filter improves the system EMC performance.



8.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions.


9.Layered independently-sealed ventilation channel and re-dundant fan, circuit boards with protective paints and a dust filter embedded make it highly efficient to dissipate heat and protect the product effectively under severe environment.



GP9335C Series Technical Specification:

Model GP9335C
Rectifier Type 6p 12p 6p 12p 6p 12p 6p 12p 6p 12p
Rated Nominal 120KVA/108KW 160KVA/144KVA 200KVA/180KW 300KVA/270KW 400KVA/360KW
Rated input voltage 380/400/415VAC 3-phase 4-wire
Rated frequency 50/60HZ
Input parameters
Input voltage range ±25%
Input frequency range 45Hz~65Hz
Input soft start function 0-100% 5-300settable
Input power factor >0.98(If harmonic filter is added)
Input harmonic current (THDi) ‹4.5%(If harmonic filter is added)
Bypass
Bypass voltage range -20%~+15%
Bypass frequency range 50/60HZ±10%
Output parameters
Inverter output voltage 380/400/415VAC 3-phase 4-wire
Voltage stability ±1%(Steady status),±3%(Transient status)
Frequency 50/60Hz
Mains power synchronization window ±5%
Actually measured frequency accuracy (internal clock) 50/60Hz±0.01Hz
Output power factor 0.9(Output 90kW per 100kVA)
Transient response time <5ms
Inverter overload capability At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s
  3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds
Short circuit current from inverter
Maximum Bypass capability 1000% for 100ms
  With 100% balanced load <1°
Phase shift
characteristic With 100% imbalance load <1°
  100% linear load <1%
Total harmonic
Distortion(THDv) 100% non-linear load <3%
System efficiency (full load) Up to 94% (inverter efficiency is up to 98%)
Rectifier output parameters
Charger output voltage stability 1%
DC ripple voltage ≤1%
Operating environment
Operating temperature range 0~40°C
Storage temperature -25~70°C(Without battery)
Relative humidity 0~95% No condensation
Noise (1m) 58-68dB
Protection level IP20
Standard Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design andTest IEC62040-3

Applications:
Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.






3 Phase Low Frequency Online UPS Pure Sine Wave Power Supply for Telecom 0

3 Phase Low Frequency Online UPS Pure Sine Wave Power Supply for Telecom 1

3 Phase Low Frequency Online UPS Pure Sine Wave Power Supply for Telecom 2
