12V / 9AH True uninterrupted power source , computer backup power supply 10-30KVA

उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: SOROTEC
प्रमाणन: CE,ROHS,ISO9000
Model Number: HP9335C Plus 10-30kVA Online UPS
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 2PCS Uninterrupted Power Supply
मूल्य: 1000USD
Packaging Details: Standard Exported Cartons and Pallets for Uninterrupted Power Supply
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

विस्तार जानकारी

उत्पाद का नाम: निर्बाध विद्युत आपूर्ति क्षमता: 10-30KVA
इनपुट चरण: 3Ph में / 3Ph आउट पावर फैक्टर: 0.9
आवृत्ति रेंज: 50/60 हर्ट्ज बिजली की आपूर्ति: एसी (उपयोगिता)
हस्तांतरण के समय: 0ms बैटरि वोल्टेज: 12V / 9Ah
आवेदन: निजी कंप्यूटर
हाई लाइट:

uninterruptable power supply

,

ups power supply

उत्पाद विवरण



12V / 9AH True uninterrupted power source , computer backup power supply 10-30KVA

Product Descriptions:



SOROTEC HP9335C Plus series,is a type of  high frequency double-conversion online uninterrupted power supply (UPS) system ,capacity from 10KVA to 30KVA ,support 3phase input and 3phase output, 380/450/415VAC,50/60HZ system,high output power factor 0.9 can take more loads,wide input voltage range(110-300VAC).It accepts dual-mains inputs and emergency power off(EPO) in emergency case.



SOROTEC HP9335C Plus series,adopts advanced DSP technology guarantees high performance,active power factor correction in all phase.3-stage extendable charging design for optimized battery performance.adjustable battery numbers and maintenance bypass available.It supports 50hz/60hz frequency conversion mode and ECO mode operation for energy saving.



SOROTEC HP9335C Plus series,with SNMP+USB+RS232 multiple communications,optional N+X parallel redundancy ,and isolation transformer offers full isolation and complete common mode noise rejection.

Widely used to provide reliable and long time uninterrupted backup power supply for personal computers, medical,telecom, local area networks,labs,servers,e-business and so on precision equipments.

Technical Parameters of HP9335C Plus Series High Frequency Online UPS

MODEL HP9335C Plus 10-30KVA
10K 10K-XL 15K 15K-XL 20K 20K-XL 30K 30K-XL
CAPACITY 10KVA / 9KW 15KVA / 13.5KW 20KVA / 18KW 30KVA / 27KW
PHASE 3 Phase with Neutral
INPUT
Voltage Range Low Line Loss 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load
Low Line Comeback Low Line Loss Voltage + 10V
High Line Loss 300 VAC(Ph-N) ± 3 %
High Line Comeback High Line Loss Voltage - 10V
Phase Three phase with ground
Power Factor ≥ 0.99 at 100% Load
OUTPUT
Output voltage 208/220/230/240VAC(Ph-N)
AC Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload AC mode 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec
Battery mode 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec
Current Crest Ratio 3:1 max
Harmonic Distortion ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
Transfer Time Line←→Battery 0 ms
Inverte←→Bypass 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
Line←→ECO <10 ms
EFFICIENCY
AC mode > 89% > 89% > 89% > 90%
Battery Mode > 86% > 88% > 87% > 89%
BATTERY
Standard Model Type

12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah
Numbers 20(18-20 adjustable) 2 x 20(18-20 adjustable) 2 x 20(18-20 adjustable) 3 x 20(18-20 adjustable)
Recharge Time 9 hours recover to 90% capacity
Charging Current 1.0 A ± 10% (max.) 2.0 A ± 10% (max.) 2.0 A ± 10% (max.) 4.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
Long-run Model Type Depending on applications
Numbers 18-20
Charging Current 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 12.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
PHYSICAL
Standard Model Dimension,DxWxH(mm) 832 X250X894 832 X250X1275
Long-run Model Dimension,DxWxH(mm) 609 X250X768 832 X250X828
ENVIRONMENT
Operation Temperature 0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity <95 % and non-condensing
Operation Altitude <1000m
Acoustic Noise Level Less than 58dB @ 1 Meter Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
USB Power management from SNMP manager and web browser


Product Show:

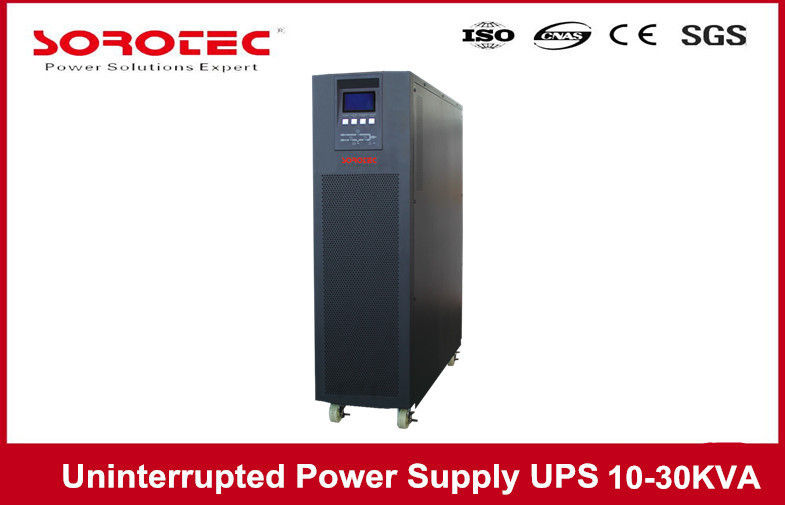

12V / 9AH True uninterrupted power source , computer backup power supply 10-30KVA 0

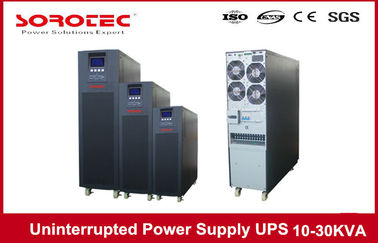

12V / 9AH True uninterrupted power source , computer backup power supply 10-30KVA 1
