उत्पाद विवरण:
|
|
| Place of Origin: | China |
|---|---|
| ब्रांड नाम: | SOROTEC |
| प्रमाणन: | CE,ROHS,ISO9000 |
| Model Number: | GP9332C 10 - 200KVA |
|
भुगतान & नौवहन नियमों:
|
|
| Minimum Order Quantity: | 1PCS Low Frequency Online UPS |
| मूल्य: | 1000-10000 USD |
| Packaging Details: | Standard Exported Cartons and Pallets for Low Frequency Online UPS |
| Delivery Time: | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms: | 30% TT in advance, the balance before shipping, |
| Supply Ability: | 3000PCS/Month for Low Frequency Online UPS |
|
विस्तार जानकारी |
|||
| उत्पाद का नाम: | दूरसंचार के लिए ऑनलाइन यूपीएस बिजली की आपूर्ति | आदर्श: | GP9312C सीरीज 10-100KVA |
|---|---|---|---|
| बिजली उत्पादन के कारक: | 0.8 | बैकअप पावर समाधान: | हाँ |
| अलग ट्रांसफॉर्मर: | हाँ | समानांतर: | एन + एक्स अतिरेक |
| आवृत्ति: | 45-65Hz | ||
| हाई लाइट: | शुद्ध साइन लहर अप,remote control ups |
||
उत्पाद विवरण
RS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPS
GP9312C Series Low Frequency Online UPS,Capacity from 10KVA to 100KVA,3Ph in/1Ph out and pure sine wave output,Output power factor 0.8,Support maximum 8 units for parallel or N+X redundancy, OEM/OEM produce,LOGO customized and Sample is available.
Key Features:
Technical Specifications of Online UPS GP9332C 10-200KVA
Model |
GP9332C 10-200KVA | |||||||||
| Rated Power (KVA) | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | |
| Active Power (KW) | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 90KW | |
| Input | ||||||||||
| Nominal Voltage | 380/400/415VAC 3-phase | |||||||||
| Voltage tolerance | 400V + 20%/ -25% | |||||||||
| Frequency | 45 ÷ 65 Hz | |||||||||
| Soft Start | 0 ÷ 100% in 30’’ (selectable) | |||||||||
| Permitted frequency tolerance | ± 2% (selectable from ± 1% to ± 5% from the front panel) | |||||||||
| Standard features | Back Feed protection; separable bypass line | |||||||||
| Battery | ||||||||||
| Type | Lead, flooded and VRLA AGM / GEL; NiCd | |||||||||
| AC ripple | < 1% | |||||||||
| Temperature compensation | -0.5V × ℃ | |||||||||
| Typical charging current | 0.2 × C10 | |||||||||
| Output | ||||||||||
| Number of phase | 3 + N | |||||||||
| Nominal voltage | 380/400/415VAC 3-phase +N | |||||||||
| Static stability | ± 1% | |||||||||
| Dynamic stability | ± 5% in 10ms | |||||||||
| Voltage distortion | <1% with linear load ; < 3% with no-Linear load | |||||||||
| Crest factor (lpeak/1rms) | 3:1 | |||||||||
| Frequency stability on battery mode | 0.05% | |||||||||
| Frequency | 50 or 60Hz (selectable) | |||||||||
| Overload | 110% for 60’ ; 125% for 10’; 150% for 1’ | |||||||||
| Environment | ||||||||||
| Remote signaling | Voltage-free contacts | |||||||||
| Remote commands | EPO and bypass | |||||||||
| Communication | Double RS232 + remote contacts +2 communication interface slots | |||||||||
| Operating Temperature | 0 ℃ / + 40 ℃ | |||||||||
| Relative humidity | < 95% non condensing | |||||||||
| Colour | Light grey RAL 7035 | |||||||||
| Noise | 54 | 60 | 62 | 63 ÷ 68 dBA at 1m | ||||||
| Protection rating | IP20 | |||||||||
| Efficiency Smart Mode | Up to 98% | |||||||||
| Compliance | European Directives: LV 2006/95/CE; EMC 2004/108/EC; Saftety IEC EN 62040-1;EMC IEC EN 62040-2 C2 | |||||||||
| Classification according to IEC 62040-3 | (Voltage Frequency Independent) VFI –SS - 111 | |||||||||
| Physical parameters | ||||||||||
| Weight (kg) without batteries | 210 | 220 | 230 | 280 | 330 | 450 | 600 | 640 | 650 | |
| Dimension (h×w×d) (mm) |
1400 × 555 × 740 |
1400 × 800 × 740 |
1900 × 800 × 800 |
|||||||

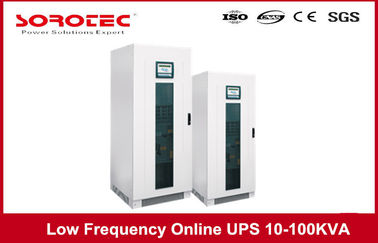

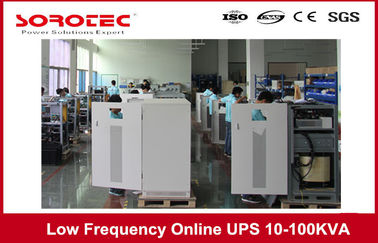

Product Show:
